Additional product details
TAG Tow Ball Mounts are manufactured using drop-forged steel, CNC milled and robotically welded for precision and consistency. Designed to accompany the TAG Heavy Duty Towbar, fitting a 50mm Square Hitch Receiver and available in multiple drop/rise or adjustable configurations. All TAG Tow Ball Mounts are ADR compliant, batch marked and powder-coated for a premium, durable finish.

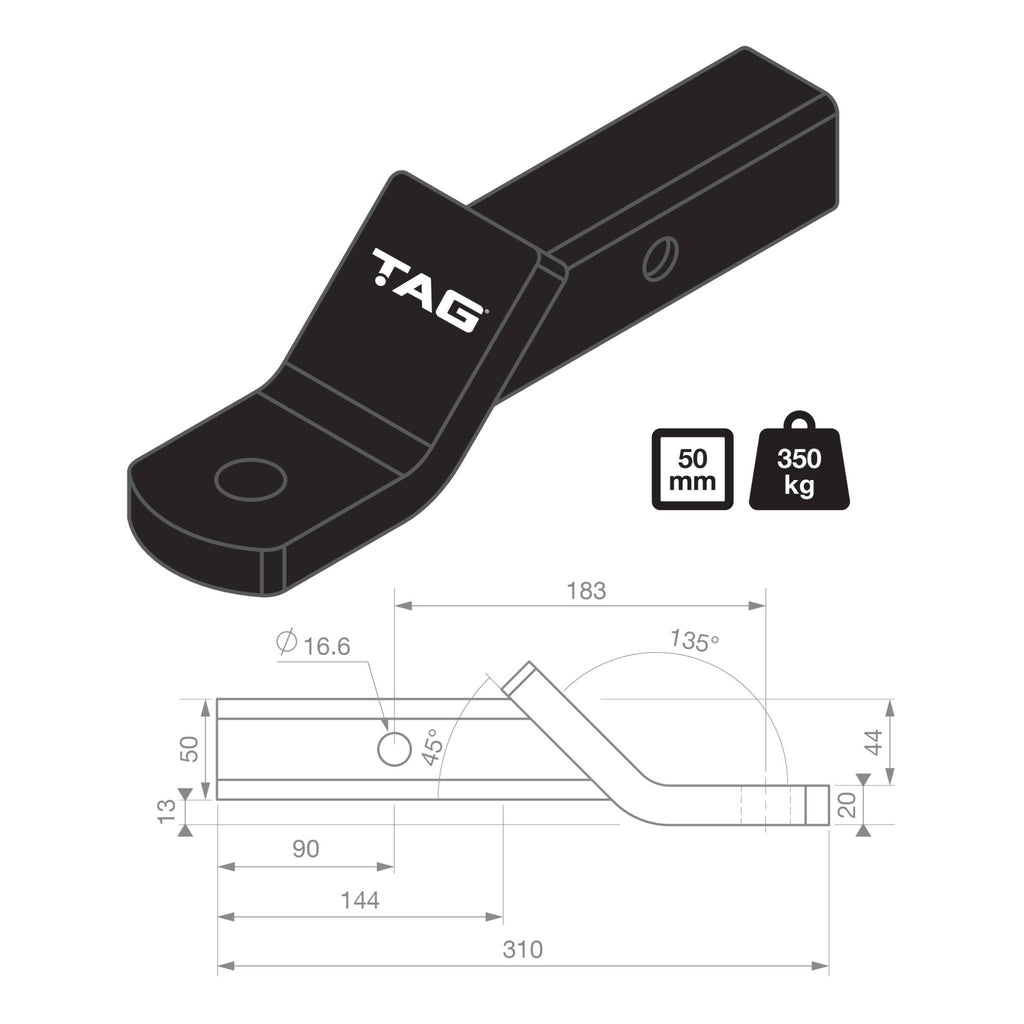

183mm Long (Hitch Pin Hole to Tow Ball Hole)
135° Tongue Face
Drop: 18mm
Can be mounted in Drop Mode or Rise Mode to raise or lower the tow ball
3500kg Gross Trailer Weight
350kg Ball Weight
Durable Powder-Coated Finish
ADR 62/02 Compliant
TAG Limited Lifetime Warranty
Tow Ball, R-Clip & Hitch Pin sold separately.
- Tow Ball Mount Class: Heavy Duty (Class 4)
- Gross Trailer Weight: 3500
- Ball Weight [kg]: 350
- Hitch Type: Heavy Duty 50mm Square
- Drop: 18mm
- Length: 313
- Length (Pin To Ball): 183mm
- Front to Pin (mm): 213
- Back to Pin (mm): 90
- Tongue Face: 135°
- Coating: Powder Coated
